Handheld Tympanometer

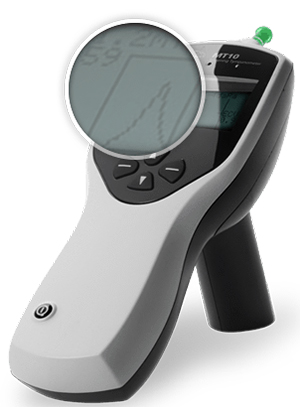

The MT10 automatic tympanometer is fast and easy to operate and provides objective measures that cannot be obtained by otoscopy alone.

Easy srceening with MT10
In modern care settings fast and reliable testing is paramount. The MT10 is built to meet these requirements in an easy and cost effective way.

Results can be obtained with little efforts and with no response required from the patient. This is especially beneficial when dealing with difficult-to-test patients or small children. For example otitis media, a major cause of temporary or permanent hearing impairment in children, can be easily and quickly detected with the MT10.

Professional use
The MT10 is well suited for diagnostic use as tympanograms and optional reflex responses are all recorded with great detail. With the MT10 you can detect otitis media, a perforated eardrum, cholesteotomas and certain neurological disorders. You can also check tympanostomy tubes and follow up on post medical treatments.

Ipsilateral Acoustic Reflex
Four different reflex tests may be performed per ear using either fixed or automatic intensity selection. The test is carried out at the correct pressure level and the actual reflex characteristics are displayed on the screen for the operator to view and interpret.
  • 4 frequencies (500, 1000, 2000, 4000 Hz)
  • Single or multiple dB level threshold search
  • Auto detection of threshold
30 patients in memory
The MT10 can hold test results of up to 30 patients in its memory. This makes it possible to screen a large group of patients and print out the data at a later time.

MT10 highlights
  • -400 to +200 daPa
  • Ipsilateral Reflexes (optional)
  • 30 patient memory
  • Fast & reliable
  • Lightweight and portable

The MT10 offers PC-integration using the Diagnostic Suite Windows® software for transferring tympanometric data to the PC. The diagnostic suite offers features such as:
  • Tympanometric data transfer
  • Advanced print layout wizard
  • Personalized and combined reporting
  • Advanced report page
  • Patient and session handling
  • Full database integration: OtoAccess™ and Noah compatible
MT10 Technical Specifications

Basic facts

Size Length
  • 19 cm
  • 8 cm
  • 4 cm
Weight: 380g

Power supply
  • 4 Alkaline AA Cells or
  • 4 NIMH rechargeable batteries which must be larger than 2.3Ah capacity.
Medical CE-mark: Yes

 Download Specifications Sheet
